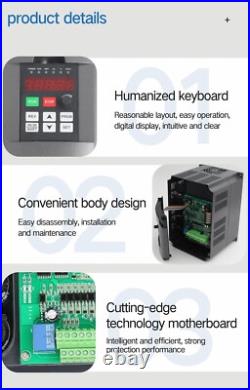

UK? HY VFD Frequency 2.2KW 220V Single to 3Phase Motor Inverter Speed Controller with 2m extension cable For CNC Router Milling Engraving Machine. A ustria, B elgium, B ulgaria, C zechRepublic, D enmark, E stonia, F inland, F rance, G ermany, G reece, H ungary, I reland, I taly, L atvia, L iechtenstein, L ithuania, L uxembourg, M onaco, N etherlands, P oland, P ortugal, R omania, S lovakia, S lovenia, S pain, S weden. 1 x 2.2KW 220V 3HP Inverter VFD 10A (Huan Yang Brand). 1 x 2M extension cable/control panel box. 1 x English user manual. HY 2.2KW Inverter VFD 220V input with 220V output. Technical Parameters? – Control Model: SPWN. Input:1 or 3 phase 220V 0-50Hz/60Hz. Vibration: below 0.5G. Operation Temperature: -10 ~40? . Five-Digits Display and Status Indicator Lamp display frequency, current, revolution, voltage, counter, temperature, foward or reverse running, fault, ect. General Control? – In addition to 4 segment reduction time (0.1-6500 seconds) can be arbitrarily selected, not only can set a V / F curve, but also set torque, up to 10.0% start torque can reach 150%. There are also other functions, like an automatic voltage regulator (AVR), deceleration stop or free stop, DC brake, automatic reset reset, frequency tracking, PLC program control, transverse control, carrier adjustable by max 20kHz, ect. Input/Output Terminals? – 6 Multi-function input terminals can implement 8 speed control, program operation, 4 segment reduction switching, UP/DOWN functions, counter, external emergency stop function. There are 5 multi-function output terminals for displaying running, zero speed, counter, external abnormity, program operation and other information and warnings. Multi-Protection Functions? Including overload protection, FUSE broken-motor stops protection, over-voltage / low-voltage protection, restarted by frequency track after instantaneous stop, anti-stall during acceleration/deceleration operation, electronic circuit protection. And many other protection functions, such as over-heat protection, restriction of reverse running, direct start after power on, fault reset, parameter lock PID, one-drive-more, ect. Installation/use environment? In order to make the cooling effect, the frequency converter must be installed vertically and ensure that the air is flowing smoothly. Before installing and using the product, please read the instruction manual (included in the package) of the inverter carefully to give full play to its functions and ensure safety. Notice: If your motor’s speed is not 24000rpm, please first restore the factory settings and change PD013 to 8, then you can set other parameters, after that can you connect the VFD to 3 phase motor. Input Voltage: 220VAC(+/-15%). Input Frequency: 48-63 Hz. Output Frequency: 0-400 Hz. Input Phase: 1 phase or 3 phase. Output Phase: 3 phase. PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability. Easy PLC function can realize 16 legs of speed and inverter control function. With extremely strong anti-jamming capability. Low output ratting torque 0.5HZ-150%, low speed running ability. Carrier adjustable by 16KHZ, completely soundless working environment. Broad voltage working area, normal running in 220-240V. Auto voltage regulation (AVR) technique, for ensuring the inverter load capability. Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes. With perfect error protection and short circuit starting protection capability. Led display zone, indicating: POWER, FOR, REV, Frequency, Current, Revolution, etc. Main diaplay zone, indicating: Frequency, Current, AC V, DC V, Revolution, Counter temperature, etc. Stop / Reset key. FOR / REV switch. Power value change key. Connect any 2pin terminal “R”, “S” or “T” of the inverter to. Including overload protection, FUSE broken-motor stops protection, over-voltage / low-voltage protection, restarted by frequency track after instantaneous stop, anti-stall during acceleration/deceleration operation, electronic circuit protection. Control mode is SPWM, it is very easy to use and convenient. 2 Protection functions are very strong. 3 Fin over-heat protection. 6 Restart after instant stop, stall protection. Item must be in it’s original condition and no physical damage. We are happy to have your questions. We are here to solve them by the friendly and quick ways.
