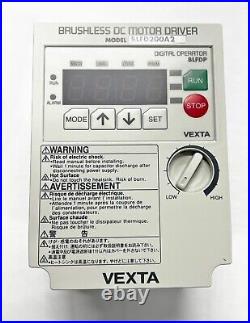

Oriental BLF6200A-30FR Brushless DC Motor Speed Control System +BLFD200A2 Driver. This product data sheet is originally written in English. And brushless DC geared motor / gearmotor bundle with pre-assembled flat gearhead (1/30 ratio; hollow shaft output) – Oriental Motor (BLF series) – Rated current 4.7A – Rated power 0.2kW / 200W / 1/4HP – Rotational speed 80rpm-4000rpm – 0.4m / 1.31ft. Cable – Flange mounting – Frame size 6 (110x110mm flange) – with 1 x 40cm pigtail terminated with 4-pin A. + 1 x 40cm pigtail terminated with 6-pin MLX. 200 W (1/4 HP). Hollow Shaft Flat Gearhead. Gear Ratio (X:1). Variable Speed Range (r/min). From gearhead mounting surface = 450 lb. From gearhead mounting surface = 400 lb. [Motor] UL, CSA standards: Class A (221ºF [105ºC]). EN standards: Class E (248ºF [120ºC]). [Motor] 100 M? Or more when 500 VDC megger is applied between the windings and the frame. [Driver] 100 M? Or more when 500 VDC megger is applied between the power supply input terminal and the Protective Earth terminal, between the power supply terminal and I/O terminal. [Motor] Sufficient to withstand 1.5 kV at 50Hz applied between the windings and the frame for 1 minute. [Driver] Sufficient to withstand 1.8 kV (3 kV) at 50 Hz applied between the power supply input terminal and the PE terminal (I/O terminal) for 1 minute. 32ºF 122ºF (0ºC 50ºC), nonfreezing. No corrosive gases or dust. [Motor] IP65 (excluding connector). [Driver] IP20 (in the cabinet). [Digital Operator] IP65 (when optional remote operation kit is used). Speed Control Method (Select one of the following). External potentiometer (20k? , 1/4W). Number of Speed Settings. One of the following methods: One speed set by internal potentiometer, one speed set by external potentiometer and up to six additional speeds can be set using the digital operator (Speeds can be set in 1 r/min increments) or up eight speeds set using digital operator. [at 3000 r/min] 0.2 15 sec. (factory setting: 0.5 second). Up to eight speeds using the digital operator. Vertical Drive (Gravitational Operation). IP65 [Motor] 100 M? Or more when 500 VDC megger is applied between the windings and the frame. One of the following methods: One speed set by in. Nominal Rated Input Voltage.
